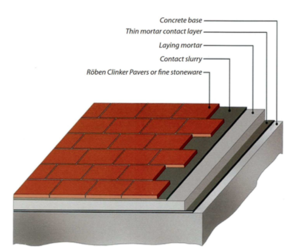

The installation system consists of a mortar bed,

leveled to obtain a smooth, properly sloped

surface. After applying a bond slurry, the tiles

are laid and vibrated in place to create a compacted

and monolithic floor system. The compound is accomplished

by applying a cement-silica sand grout into the remaining narrow joints between the tiles.



◊bonded ceramic floor tile installation

◊system thickness 2 3/8"

     •setting bed (mud bed/cement-sand mixture) approx. 1 3/4"

     •Rectangular or square tile - thickness 5/8"

     •Cement-silica sand grout

◊preferred for new construction at the ground level
